Caliper - India Tools

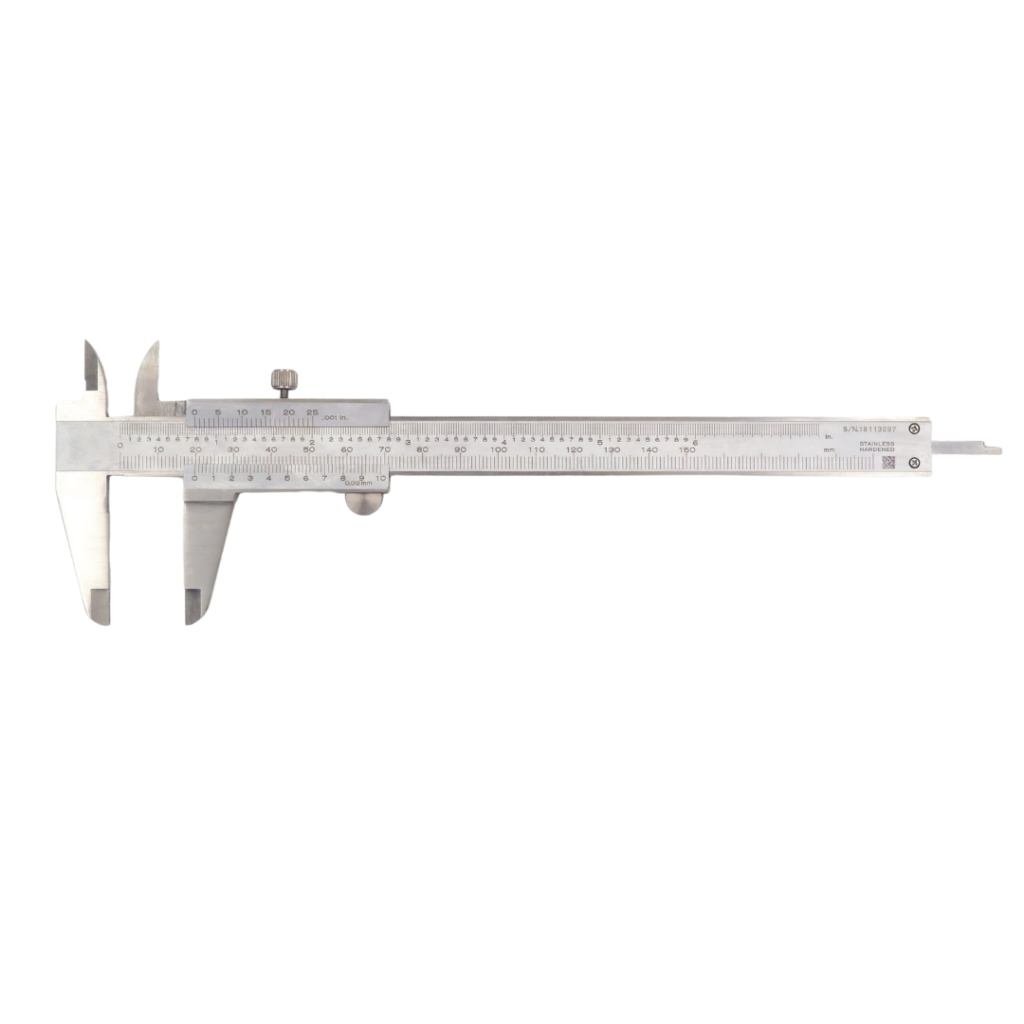

Vernier Caliper with Fine Adjustment – Series VF

Fine adjustment aids slider positioning.

● Allows step measurement.

● Material: Stainless Steel Harden.

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – VF 150	0-150	+/- 0.03 mm	0.02mm/0.001”
ITI – VF 200	0-200	+/- 0.03 mm	0.02mm/0.001”
ITI – VF 300	0-300	+/- 0.04 mm	0.02mm/0.001”
ITI – VF 450	0-450	+/- 0.05 mm	0.02mm/0.001”
ITI – VF 600	0-600	+/- 0.05 mm	0.02mm/0.001”
ITI – VF 1000	0-1000	+/- 0.07 mm	0.02mm/0.001”

Also, we accept orders of other sizes/ ranges upon request.

Download Product Details

Vernier Caliper Without Fine Adjustment – Series VC

● Plain and basic design.

● Stepped graduation face prevents dust ingress between the main scale and slider.

● Can measure outside and inside dimensions, depth and steps.

● Carbide-tipped jaw calipers are optional for rough finished parts, casting, grinding stones, etc.

● Material: Stainless Steel Harden.

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – VC 150	0-150	+/- 0.05 mm	0.02mm/0.001”
ITI – VC 200	0-200	+/- 0.05 mm	0.02mm/0.001”
ITI – VC 300	0-300	+/- 0.08 mm	0.02mm/0.001”

Also, we accept orders of other sizes/ ranges upon request.

Download Product Details

Long Jaws Vernier Caliper – Series VCL

● Long jaws for measuring hard-to-reach workpiece features.

● Inside and outside measurements can be read directly from the upper and lower vernier scales.

● Inside measurement is possible upwards from the minimum inside measuring length (jaws closed)

● Material: Stainless Steel Harden.

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – VCL 300	10-300 mm (JL-150mm)	+/- 0.07 mm	0.02mm/0.001”
ITI – VCL 600	20-600 mm (JL-200mm)	+/- 0.13 mm	0.02mm/0.001”
ITI – VCL 600A	20-600 mm (JL-300mm)	+/- 0.13 mm	0.02mm/0.001”
ITI – VCL 1000	20-1000 mm (JL-200mm)	+/- 0.2 mm	0.02mm/0.001”

Also, we accept orders of other sizes/ ranges upon request.

Download Product Details

Dial Caliper – Series DVC (0.02mm, also available 0.01mm)

● Newly designed dial movement for ultra-smooth sliding and high shock protection.

● Easy-to-read yellow dial or white dial.

● Large finger rest aids ease of use.

● Jaw tips are relieved for easy measurement of thin parts.

● Allows step measurement.

● Material: Stainless Steel Harden.

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – DVC 150	0-150	+/- 0.03 mm	0.02mm
ITI – DVC 200	0-200	+/- 0.03 mm	0.02mm
ITI – DVC 300	0-300	+/- 0.04 mm	0.02mm
ITI – DVC 600	0-600	+/- 0.04 mm	0.02mm
ITI – DVC 1000	0-1000	+/- 0.05 mm	0.02mm

Also, we accept orders of other sizes/ ranges upon request.

Download Product Details

Digital Vernier Caliper – Series DVCE

● New ergonomic design with finger rest.

● Large and clear LCD readout.

● Smooth slider movement makes for comfortable operation.

● 18000 hours battery life. Allows step measurements.

● Button – inch/ mm.

● Material: Stainless Steel Harden.

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – DVCE 150	0-150 mm	+/- 0.02 mm	0.01mm/0.0005”
ITI – DVCE 200	0-200 mm	+/- 0.02 mm	0.01mm/0.0005”
ITI – DVCE 300	0-300 mm	+/- 0.03 mm	0.01mm/0.0005”
ITI – DVCE 600	0-600 mm	+/- 0.05 mm	0.01mm/0.0005”
ITI – DVCE 1000	0-1000 mm	+/- 0.07 mm	0.01mm/0.0005”

Also, we accept orders of other sizes/ ranges upon request.

Download Product Details

Digital Vernier Caliper – SERIES IP67

● New ergonomic design with finger rest.

● Large and clear LCD readout.

● Smooth slider movement makes for comfortable operation.

● 18000 hours battery life.

● Allows step measurements.

● Carbide-tipped jaw calipers are optional for rough finished parts, castings, grinding stones, etc.

● IP67 Level making it coolant proof.

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – IP67 – 150	0-150 mm	+/- 0.02 mm	0.01mm/0.0005”
ITI – IP67 – 200	0-200 mm	+/- 0.02 mm	0.01mm/0.0005”
ITI – IP67 – 300	0-300 mm	+/- 0.03 mm	0.01mm/0.0005”
ITI – IP67 – 600	0-600 mm	+/- 0.05 mm	0.01mm/0.0005”
ITI – IP67 – 1000	0-1000 mm	+/- 0.07 mm	0.01mm/0.0005”

Also, we accept orders of other sizes/ ranges upon request.

Download Product Details

Digital Vernier Caliper With Carbide Tipped Jaws - SERIES DVC-CT

● New ergonomic design with finger rest.

● Large and clear LCD readout.

● Smooth slider movement makes for comfortable operation.

● 18000 hours battery life.

● Allows step measurements.

● Carbide-tipped jaw calipers are for rough finished parts, castings, grinding stones, etc.

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – DVC-CT – 150	0-150 mm	+/- 0.02 mm	0.01mm/0.0005”
ITI – DVC-CT – 200	0-200 mm	+/- 0.02 mm	0.01mm/0.0005”
ITI – DVC-CT – 300	0-300 mm	+/- 0.03 mm	0.01mm/0.0005”
ITI – DVC-CT – 600	0-600 mm	+/- 0.05 mm	0.01mm/0.0005”
ITI – DVC-CT – 1000	0-1000 mm	+/- 0.07 mm	0.01mm/0.0005”

Also, we accept orders of other sizes/ ranges upon request.

Download Product Details

Vernier Depth Gauge - Series VDG

● Standard gauge for depth measurement.

● Optional longer extension bases are available. (Except for models with measuring ranges of 600 and 1000mm)

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – VDG – 150	0-150 mm	+/- 0.03 mm	0.02mm
ITI – VDG – 200	0-200 mm	+/- 0.03 mm	0.02mm
ITI – VDG – 300	0-300 mm	+/- 0.04 mm	0.02mm
ITI – VDG – 600	0-600 mm	+/- 0.05 mm	0.02mm
ITI – VDG – 1000	0-1000 mm	+/- 0.07 mm	0.02mm

Also available Hook End Type Pin End Type on request.

Download Product Details

Digimatic Vernier Depth Gauge - Series DDVC

● Enables stable depth measurement with a resolution of 0.01mm.

● Sliding operation of models with the measuring ranges 150mm (6’’), 200mm (8’’) and 300mm (12’’) is smooth and comfortable.

● Optional longer extension bases are available. (Except for models with measuring ranges of 600mm, 750mm and 1000mm)

MODEL	RANGE	ACCURACY	L.C/RESOLUTION
ITI – DDVC – 150	0-150 mm	+/- 0.02 mm	0.01mm
ITI – DDVC – 200	0-200 mm	+/- 0.02 mm	0.01mm
ITI – DDVC – 300	0-300 mm	+/- 0.03 mm	0.01mm
ITI – DDVC – 600	0-600 mm	+/- 0.05 mm	0.01mm
ITI – DDVC – 1000	0-1000 mm	+/- 0.07 mm	0.01mm
