Clinometer / Inclinometer

High Precision Digital Display Inclinometer

Digital Display Inclinometer +/- 46 deg, +/- 180 deg, +/- 90 deg,

The ITI-INCLINOMETER-46/M digital inclinometer is a handheld device designed to measure slope with high accuracy. It can measure slope with an accuracy of 10 seconds of arc at ±5° and 1 minute of arc at ±46°. ITI-INCLINOMETER-46/M features temperature compensation and fast calibration, making it reliable for operational environments. Thanks to its low-power design, intelligent power-saving features, and lithium-ion rechargeable battery, the ITI-INCLINOMETER-46/M offers up to 33 hours of battery life on a single charge. Besides, taking advantage of a 2.8″ touch screen and user-friendly graphical user interface (GUI), along with measurement in units of degrees, arc seconds, mm/m and mil make slope measurement easier with the ITI-INCLINOMETER-46/M. By using microelectromechanical sensors (MEMS) and 3D acceleration data processing, ITI-INCLINOMETER-46/M’s has been able to maintain its accuracy throughout the measurement interval. In addition, thanks to temperature compensation and the use of “multi-factor temperature calibration” technology Utilizing microelectromechanical sensors (MEMS) and 3D processing of acceleration data, ITI-INCLINOMETER-46/M inclinometers maintain their accuracy throughout the measuring range. In addition, owing to temperature compensation and the use of multi-factor temperature calibration technology, the temperature drift of ITI-INCLINOMETER-46/M is less than 0.03° in the entire temperature range (0°C ~ +40°C).

Digital Display Inclinometer +/- 180 deg

Product Description

Unleash unparalleled accuracy and durability with the ITT-Inclinometer-180-V, meticulously crafted to meet the demands of professionals in need of precise dual-axis inclination measurement. Engineered with advanced technology, this robust tool offers a comprehensive measuring range of ±180°, ensuring high-precision results.

● Ultra-Precise Performance: Experience the pinnacle of precision with a resolution of 0.01 mm/m and limits of error of just 1 arcmin (Full Range) 10 arcsec in ±5° range, fortified by a repeatability of 0.004°, to deliver the consistency you can depend on.

● Rapid Response: With a response time of under 5 seconds, the ITT-Inclinometer-180-V keeps up with fast-paced environments, providing data output options through USB-C interface.

● Versatile Units of Measure: Tailor measurements to your project’s needs with a selection of

units including Deg, arcsec, arcmin, mm/m, mil, bringing flexibility to your fingertips.

● Rugged Design for Fieldwork: The ITT-Inclinometer-180-V boasts a temperature coefficient of less than 0.01 °/°C, with a working range from 0° to 50°C and 85% relative humidity – all contained in an aluminium hard anodized housing for maximum protection.

● Long-lasting Operation: A standard Lithium-ion Battery and external power source ensures

continuous operation for 33 working hours, even withstanding shock impacts up to 10grms and

100Hz.

● Intuitive Interface: A 2.8″ touch and resistive TFT LCD screen with 320*240 pixels radiates in full color, delivering a user-friendly experience and clear visibility.

● Customizable Dimensions: The base length is a practical W95L115H32 mm, adaptable per customer orders to seamlessly integrate into your workflow.

● IP54 Protection: Rest assured, with IP54 certification, this device resists dust and water intrusion, standing strong against the elements.

● Smart Capabilities: Make the most of convenient features such as the ability to select desired units, automatically set zero, and switch between absolute or relative measuring modes.

● Advanced Connectivity: Transferring data is a breeze with the capability to connect to a computer for recording absolute and relative (Relative Zero) measurements on a plane (Plane-Mode).

Download Product Details

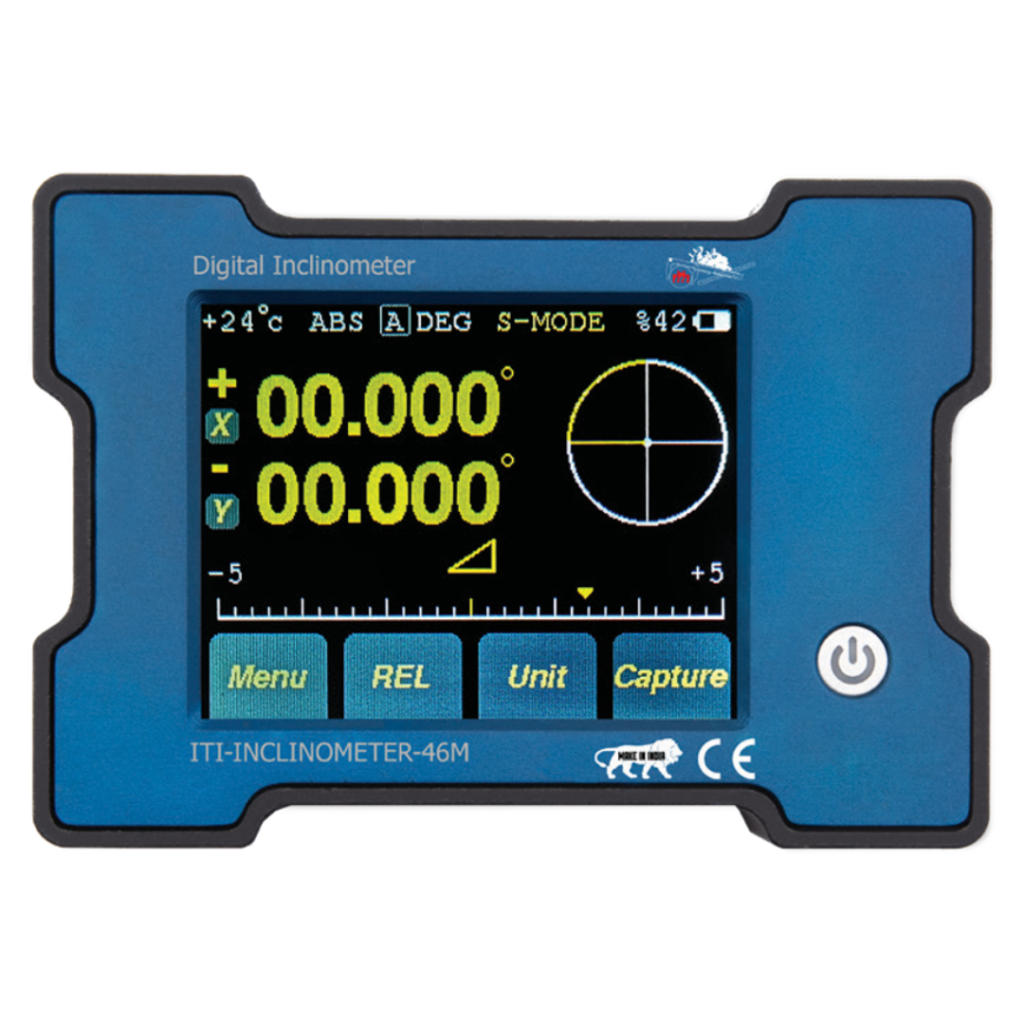

ITI - Digital Inclinometer – 46 / 46-M (magnet)

The ITI-INCLINOMETER-46 digital inclinometer is a handheld device designed to measure slope with high accuracy. It can measure slope with an accuracy of 10 seconds of arc at ±5° and 1 minute of arc at ±46°. ITI-INCLINOMETER-46 features temperature compensation and fast calibration, making it reliable for operational environments. Thanks to its low-power design, intelligent power-saving features, and lithium-ion rechargeable battery, the ITI-INCLINOMETER-46 offers up to 33 hours of battery life on a single charge.

Besides, taking advantage of a 2.8″ touch screen and user-friendly graphical user interface (GUI), along with measurement in units of degrees, arc seconds, mm/m and mil make slope measurement easier with the ITI-INCLINOMETER-46. By using microelectromechanical sensors (MEMS) and 3D acceleration data processing, ITI-INCLINOMETER-46’s has been able to maintain its accuracy throughout the measurement interval. In addition, thanks to temperature compensation and the use of “multi-factor temperature calibration” technology Utilizing microelectromechanical sensors (MEMS) and 3D processing of acceleration data, ITI-INCLINOMETER-46 inclinometers maintain their accuracy throughout the measuring range. In addition, owing to temperature compensation and the use of multi-factor temperature calibration technology, the temperature drift of ITI-INCLINOMETER-46 is less than 0.03° in the entire temperature range (0°C ~ +40°C).

Technical Specifications:

● Number of Axis – Dual Axis.

● Resolution – 0.01mm/m.

● Measuring range ±46°

● Size – 100 x 30 x 75 mm approx.

● User Quick Calibration.

● 2.8-inch Touchscreen.

● Error limit of 10 seconds of arc in ±5° range (S-Mode).

● The error limit of 1 arc minute in ±46° (Full Range).

● Temperature compensation in the operating range (0°C ~ +40°C).

● Maintaining accuracy throughout the range with “3D Processing of Acceleration Data”.

● Capability of connecting to a computer and transferring data.

● More than 33 hours of continuous work with a single charge.

● Capability of measuring absolute and relative (Relative Zero).

● Possibility of measuring relative rotation on a plane (Plane-Mode).

Download Product Details

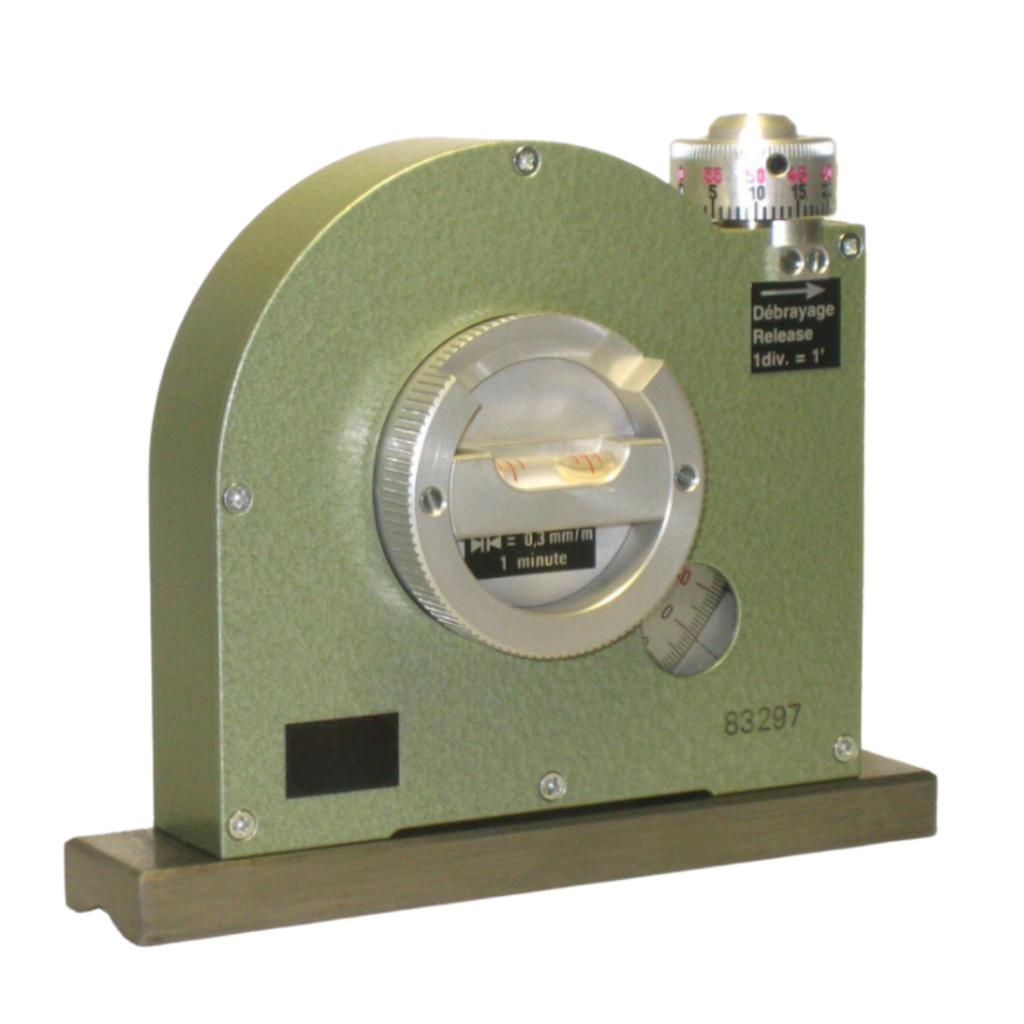

Mechanical Drum Clinometer – 83

Specifications
Graduated in degrees and arcminutes over a +/- 180° range. Vial sensitivity: 0.3 mm/m, that is 0.003 inch / 10 inch or 1 arcminute. Prismatic base, hardened and grinded, suitable for measurements on flat and cylindrical surfaces. Dimensions (mm): base 150 X 30 – height 124 Weight (gr): 1300 (w/o case) – 1800 (with case) Graduated drum is freed by a simple press so as to let the vial rotate quickly in position. In case of misadjustment, resetting the 0 position can be performed by rotating the graduated drum after releasing the 2 stop screws.

Applications
Measurement and comparison of slopes in mechanical engineering, aerospace and car manufacturing, ship building, textile industry, civil engineering, mining industry, …. Angular positioning of parts, tiltable tables, mechanical mounts, tool holder heads, grinding wheel and parts holder. This clinometer replaces a sine bar. It may conveniently be used instead of “gun aiming” types of levels.

Note: We can also provide a Digital Inclinometer as per your application/ specification.

Download Product Details

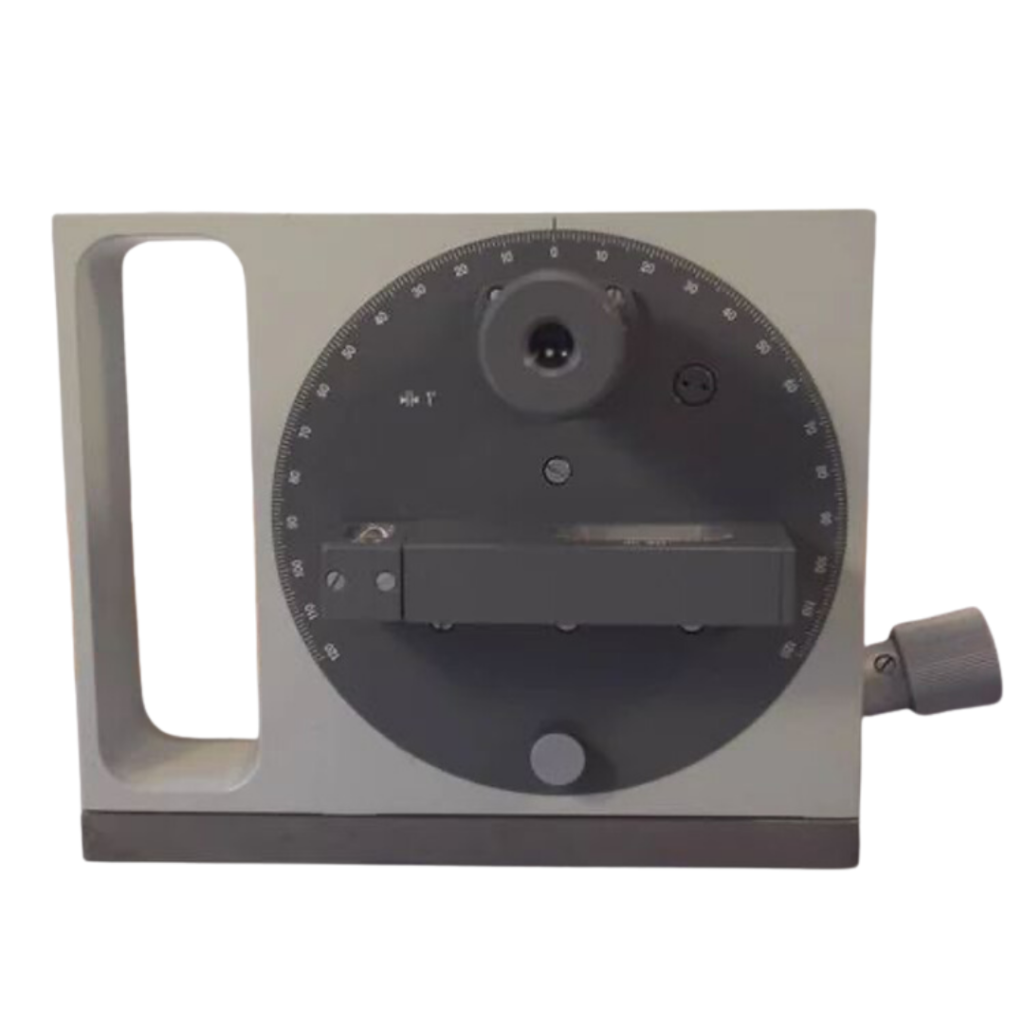

Optical Clinometer

Measurement and comparison of slopes in mechanical engineering, aerospace and car manufacturing, ship building, textile industry, civil engineering, mining industry, Angular positioning of parts, tiltable tables, mechanical mounts, tool holder heads, grinding wheel and parts holder. This clinometer replaces a sine bar. It may conveniently be used instead of “gun aiming” types of levels, For Calibration of Impact Testing Machine etc.

Download Product Details
